Weeping Demon repair

Jan 24, 2020

By popular demand (OK, one person asked me about it recently), here's an old post about my (then) recent repair of an Ibanez Weeping Demon Wah pedal (which conked out during an otherwise slammin‘ performance by Shades of Green). After our lead guitarist mentioned that it was the second of those he’d owned and the first one had broken the same way, it got me thinking that maybe it was a design weakness, so it may be a common problem. Before I start, let me apologize for not having photographed too much of this… I wasn’t planning to create a tutorial when I got started. Still, hopefully I can describe it well enough.

The Weeping Demon can function in two modes: Auto-Wah and some other mode, which I’ll call normal mode because I don’t know what they call it (amazingly, I could not find an instruction manual, nor photos of a disassembled Weeping Demon, nor really any help at all on the Internet.) In “Auto-Wah” mode, the pedal sits, heel down, until you step on it. As long as you’re working the pedal, you get the Wah effect, but if you take your foot off the pedal, it returns to the heel-down position, and the Wah effect turns off. In the other mode, the pedal is not spring-loaded, and the Wah effect is on all the time. You can switch between these two modes using a lever on the right side of the pedal.

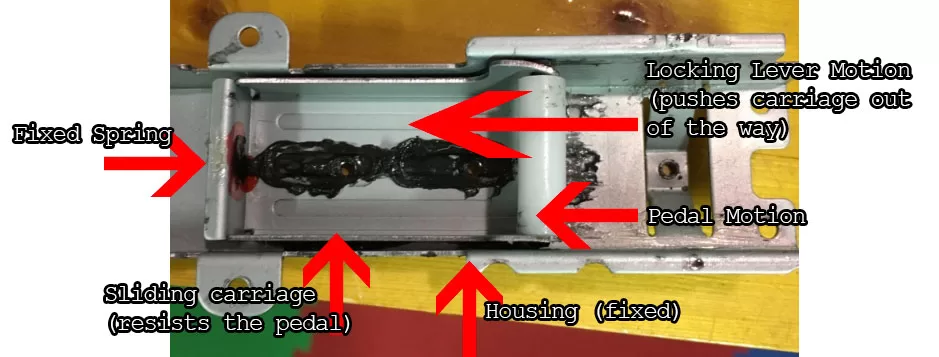

The photo below shows the metal housing for a carriage that slides back and forth, providing spring-loaded resistance to the pedal. In the photo, the lever is seen on the right because this is seen from the bottom. Note the two red dots on the housing, they’re the screws that hold the carriage to the housing (you can see the screw heads in the next photo below).

What had happened, in this case, was that the pin that held the roller on the carriage came dislodged, and so stepping on the pedal would not force the carriage back, meaning that the pedal gets no resistance.

Disassembly was very straightforward. There are about eight or ten screws holding the bottom plate onto the pedal. As near as I can tell, these screws are all identical, so you don’t have to keep track of which goes where. Once the bottom plate was removed, I found a loose spring in the area of the battery box. At first I was sure that this spring had come loose from somewhere else, and was the reason why the pedal had lost its spring. It turns out that the loose spring is actually there to make the battery box button spring back. There’s a locator hole in the bottom plate that will indicate where to line it up when you go to reassemble the pedal.

I removed all of the screws from the circuit board and also those of the metal housing that covers the carriage (see photo above, it’s the only thing that looks like it.). You don’t need to remove the circuit board, but having the screws out allows you to move it just enough so that you can get the housing out. Once I did, I could see that the pin that held the carriage roller in place had come apart.

At first, I just pushed the roller back into place, and intended to just button things up and carry on. However, you can see that the tab on the carriage that the pin was still connected to had become bent, so the roller was pinched and wouldn’t rotate freely. So I took the carriage out of the housing and straightened the tab. (Sorry, I don’t have a photo of that).

I’m not entirely sure what caused this particular Weeping Demon to fail, but I suspect it may have had to do with aggressive use of the mode selection lever. The mode selection lever does two things: hold down the “Wah” switch, and hold the carriage back so that it doesn’t push against the pedal. I think that if the pedal isn’t in the “heel-down” position when you move the lever, it may stress the roller.

In the final analysis, it seems like the metal tabs that hold the pin (that holds the nylon roller) is the weak point in this design. The spring that resists the pedal action is fairly robust, as is the pedal itself. The lever that changes modes is pretty stout as well, and the nylon carriage and pin are strong enough. I think the tabs on the sides of the carriage are the weak point (although, to be fair something has to be the weak point, right?)

I suppose the best advice I could think to give to someone who wants to preserve their Weeping Demon would be to be reasonably gentle with it, particularly when shifting modes using the lever, because that action mechanically moves the carriage out of the way by pushing on the roller. Easing up on the tension of the return spring probably couldn’t hurt, either, since the pedal and the lever both push against it.

Compared to some other gear-repair posts I’ve done, this one is really pretty basic, but as someone who is often trying to repair something for the very first time, I always appreciate if I can find out ahead of time what’s involved and how difficult it is. So in that spirit, here’s a very short how-to.

The good news is that this is a very simple fix: it will take you less than fifteen minutes. All you need is a small-ish Phillips-head screwdriver and some WD-40.

Step 1 (of 3) is to open the case. You do this by unfastening all of the screws on the bottom side of the keyboard. Actually, you probably only need to remove the screws along the perimeter. there are a half-dozen or so screws more in the center of the keyboard, but it doesn’t seem that they connect to the upper housing. I did remove all of the screws and didn’t have a problem, but I’d try just starting with the perimeter screws because I think that’s all you need.

All of the screws are of the same size and length, so you do not need to keep track of which came out of which hole.

Once the screws are removed, lift the housing from the front. Pay attention to the two ribbon cables that connect the lower housing to the upper housing. You do not need to disconnect the cables; they are long enough that you can lift the upper housing with the cables in place.

The squeaking sound you hear when you press your problem key is caused by friction between the key and the spring that provides resistance to your playing (and, of course, returning the key to its starting position). A tiny bit of WD-40 sprayed on the spring should quickly resolve the issue.

Play each key repeatedly and check to make sure it’s not squeaking. If it is, give it a shot of WD-40. Do not overuse the spray.

When all the keys are quiet, lower the upper housing and replace all of the screws you removed in step 1. That’s it. I did have a squeak return after about a year, but this process is so easy I did not really mind repeating it. I suppose you could consider other lubricants if this fix doesn’t last long enough for you, but I have no specific recommendation.
